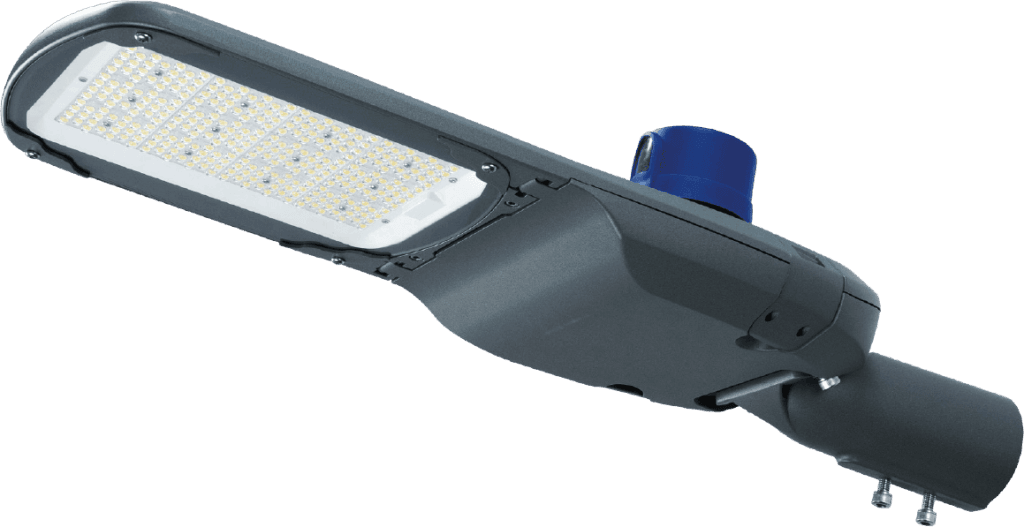

COBRATECH Series 4

Smart, Slim LED Roadway & Area Lighting State Of The Art, Durable – Up to 185Lm/W

Overview

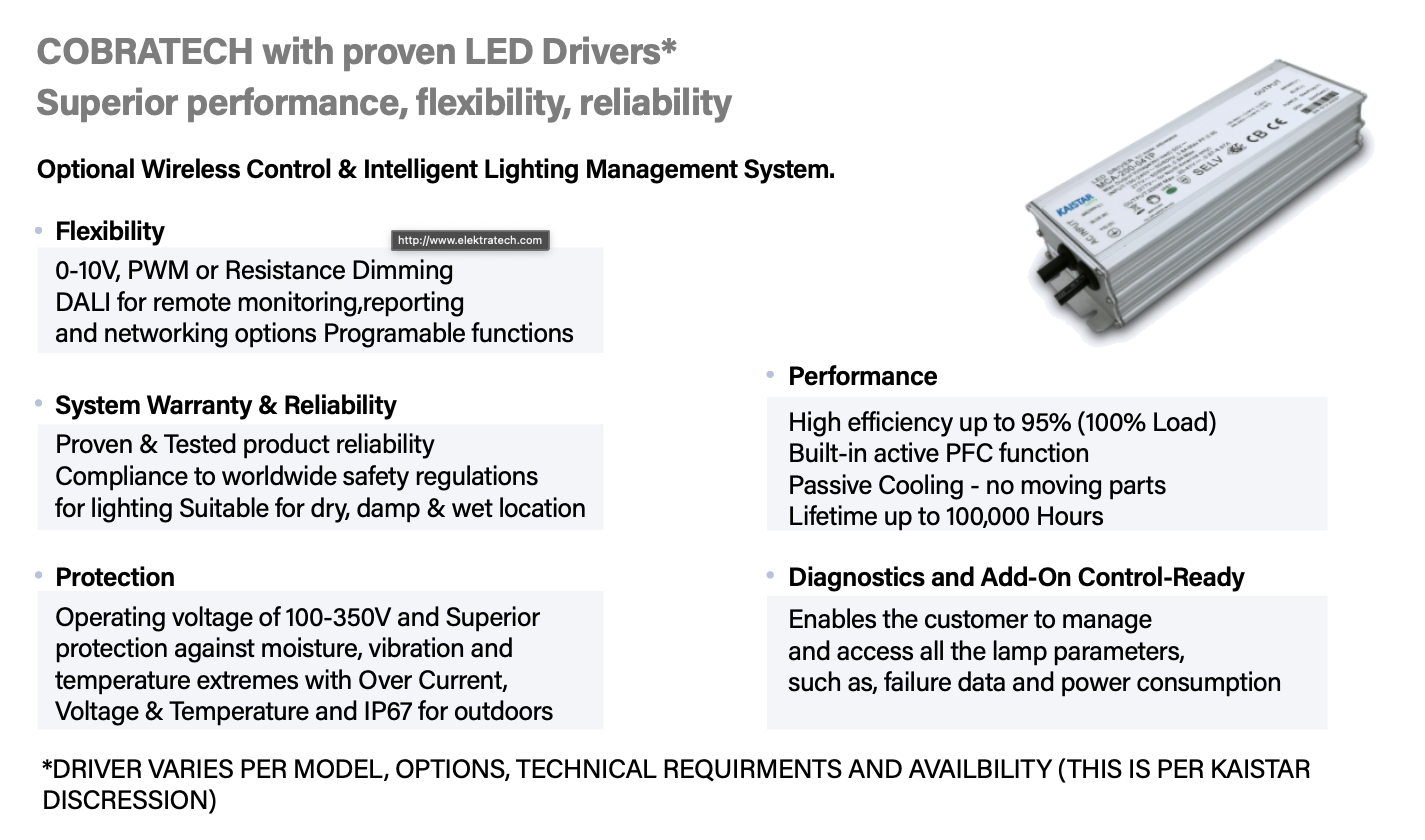

COBRATECH LED drivers deliver superior performance, reliability, and flexibility for a wide range of lighting applications. They support multiple dimming methods, including 0–10V, PWM, resistance, and DALI for remote monitoring, reporting, and networking, making them adaptable to advanced control and intelligent lighting management systems. Built with proven reliability and compliance with global safety standards, they are suitable for dry, damp, and wet environments. With an operating voltage of 100–350V and IP67 protection, they provide robust defense against moisture, vibration, temperature extremes, over-current, over-voltage, and overheating.

Delivering efficiency levels up to 95% at full load, passive cooling with no moving parts, and lifespans of up to 100,000 hours, COBRATECH drivers offer long-lasting, energy-saving performance. They also feature diagnostic and add-on control readiness, allowing users to monitor lamp performance, track power consumption, and access failure data. Driver specifications may vary depending on model, technical requirements, and availability at Kaistar’s discretion.

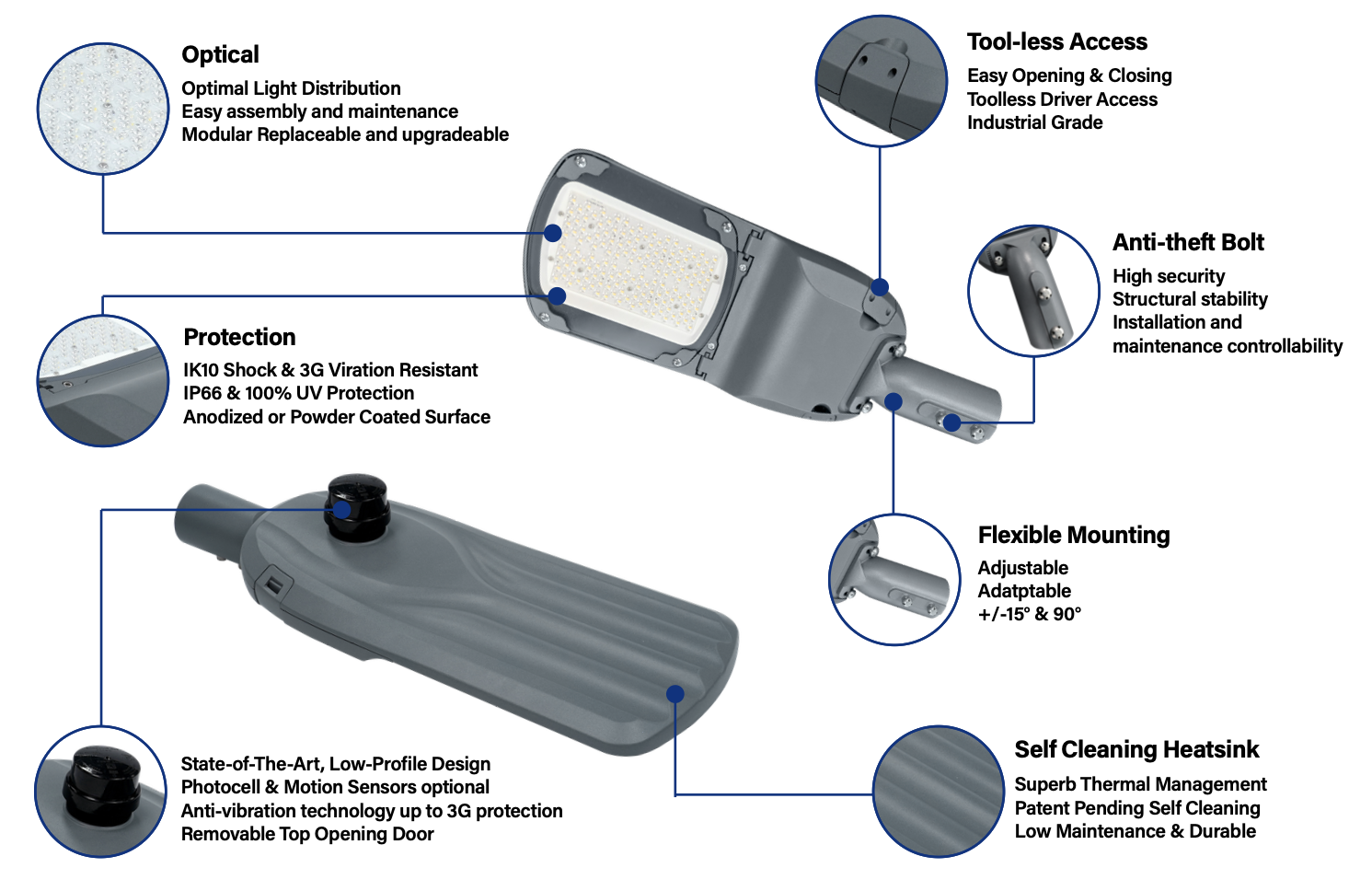

Features

icon-1-cbt-4
High quality durable die-cast aluminum body with self-cleaning surface.
icon-3-cbt-4
High-efficiency light import source, up to 185lm/W
icon-2-cbt-4
A tool-free access fixed driver chamber for easy installation.
icon-4-cbt-4
3 CCT selectable 3000K, 4000K and 6000K or Single color.
icon-5-cbt-4
Power off protection: power would automatically be off once the fixture body opened
icon-6-cbt-4
Horizontal / Vertical installation available.

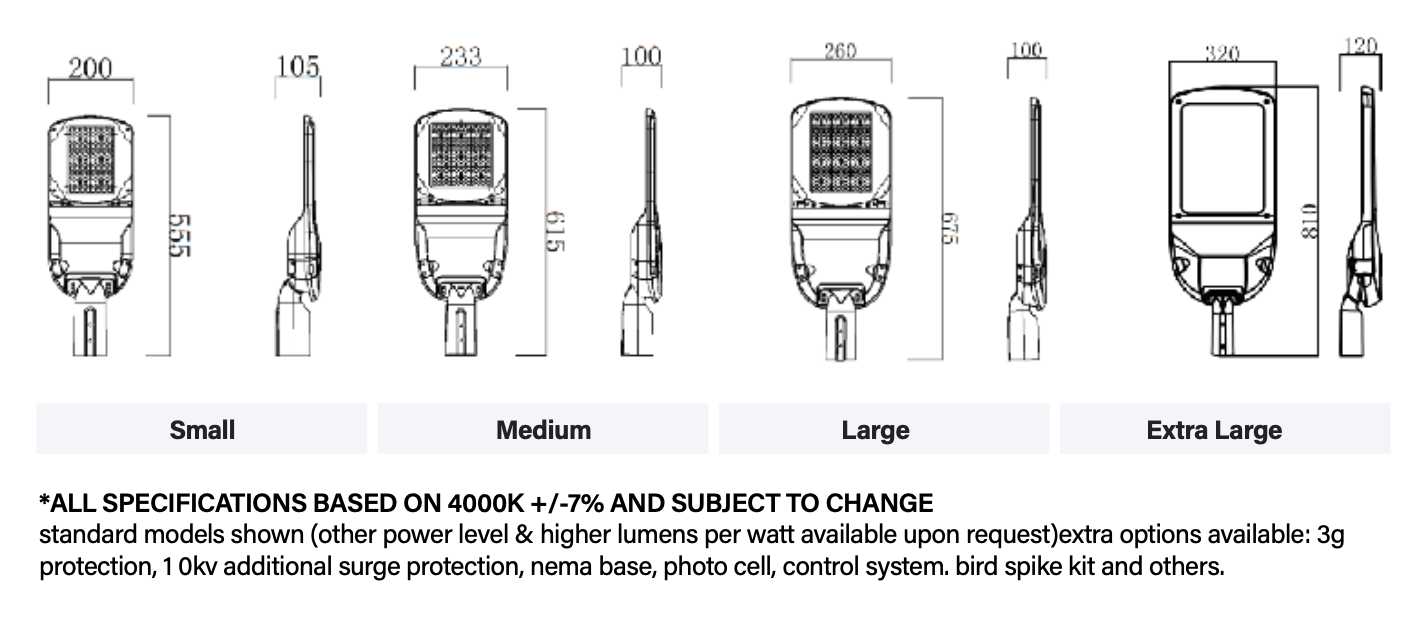

Dimensions

grey

System Configuration

white
grey
white
grey
SpecificationOption 1Option 2
LED Color Temperature4000K (3000K & 5000K Options)
Color Rendering IndexRa=70 (Options: Ra=80)

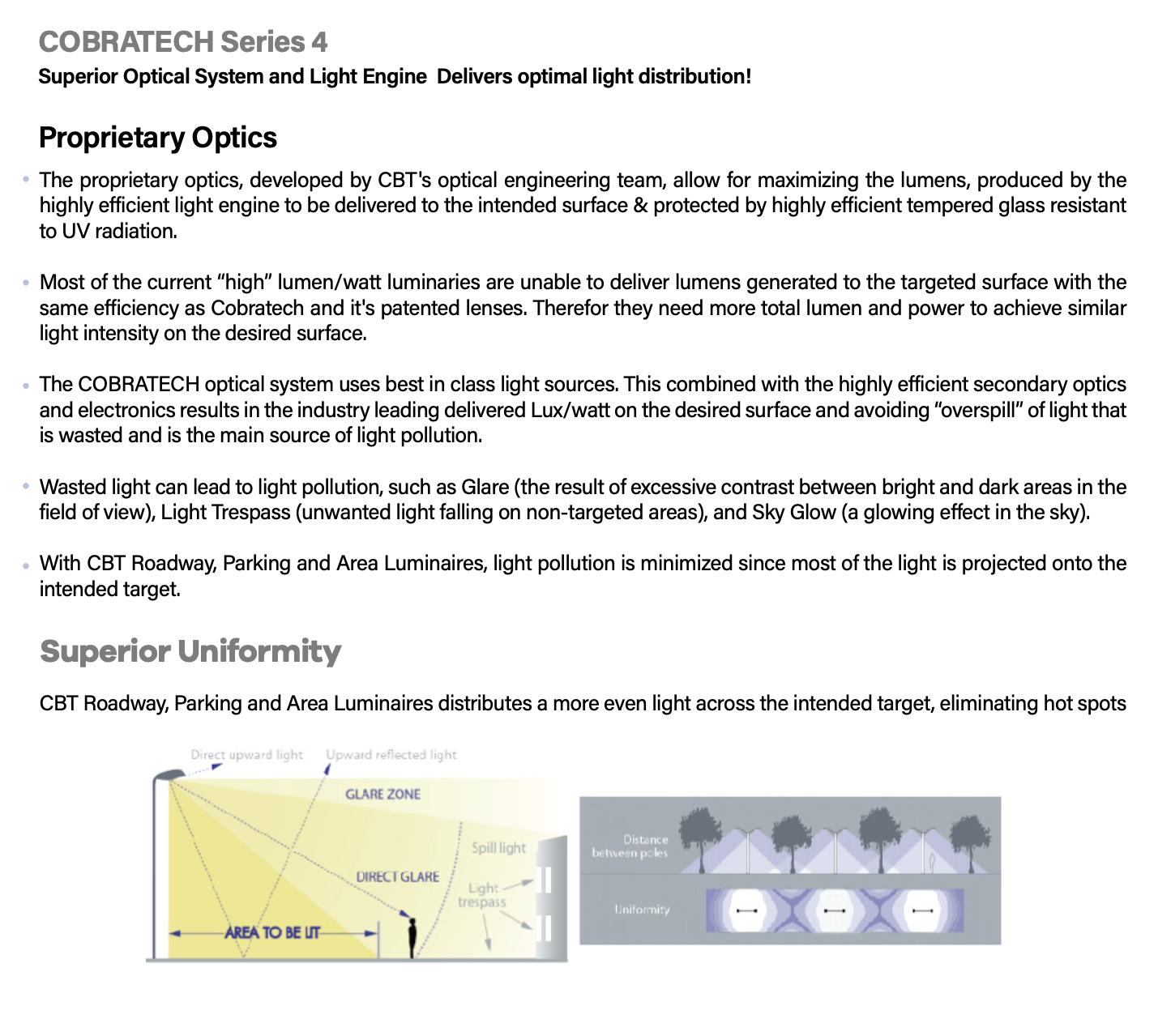

Light Distribution & Lens Kit OptionsT2M (Type II Medium)3M (Type III Medium)
T1S (Type I Short)T2S (Type II Short)
T3S (Type III Short)Customer Lenses Optional
SpecificationDetail 1Detail 2
Input Voltage Options220~240 / 100~277 50/60Hz (0-10V / Dali / NEMA 3,5 & 7 Controls)
Power Factor>0.95Operating Temp: -35℃ ~ +50℃
Surge Protection Options10KV & 20KVRelative Humidity: 5%RH ~ 95%RH

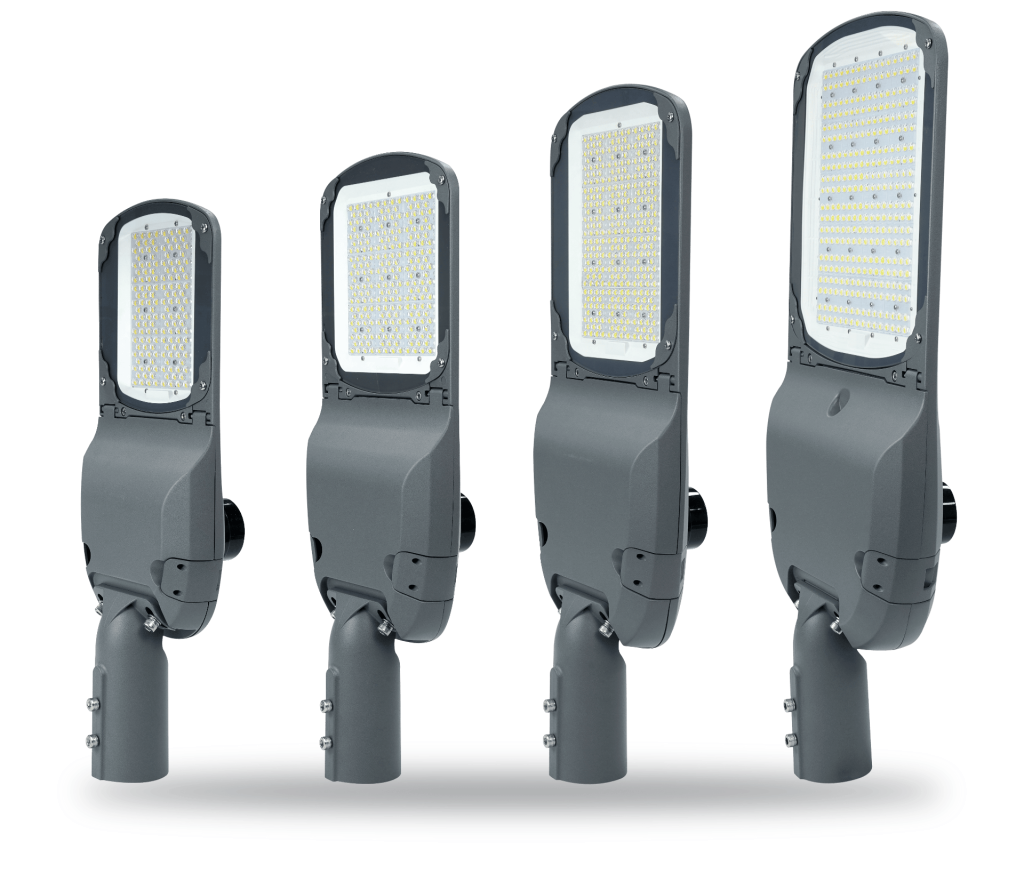

COBRATECH MODELSSystem Pwr (W)Max LumensLuminaire Efficacy (Lm/W)Weight (Kg)Dimensions (mm)
CBT4S15085001853.7555×200×105
CBT4M1100170001854.3615×233×100
CBT4L1150255001855.5675×260×100
CBT4X1200340001856.6810×320×120

Photometric Report

Downloads

You can download all of this information and more in PDF format here.
